Adjustable Brass Wire Rope Grip Lock for Secure Cable Management with 7x7 or 1x19 Construction and 1.0-1.5mm Diameter
Datos del producto:
| Lugar de origen: | Guangdong, China |
| Nombre de la marca: | W-mate |
| Número de modelo: | WR-21042804 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1000 |
|---|---|
| Precio: | $5-5.50 |
|
Información detallada |
|||
| Material: | Latón | Tipo: | Clip de cuerda de alambre |
|---|---|---|---|
| Construcción de cables: | 7x7 o 1x19 | Longitud de la cuerda de alambre: | 1000 mm o como requisito |
| Diámetro de la cuerda de alambre: | 1.0 mm;1.2 mm;1.5 mm o según sea necesario | Capacidad de carga: | 20 kg o más |
| Diámetro del cable: | 1.0-1.5 mm | Salida del cable: | Salida de fondo |
| Tratamiento superficial: | Cromado de satén | Estilo: | Especialidad |
| Carga de peso: | 20-100 kg | Distancia mínima: | 2 pulgadas |
| Tiempo de entrega: | 7 días después del pago inicial del 30% | Moq: | 1000pcs |
| Partes finales: | Fijación, fijación del techo | ||
| Resaltar: | Secure Cable Management Wire Rope Grip Lock,7x7 or 1x19 Cable Looping Gripper,1.0-1.5mm Adjustable Cable Gripper |
||
Descripción de producto

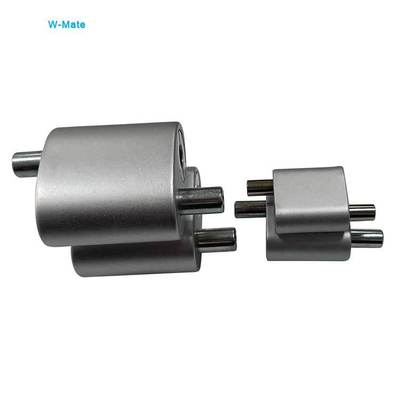

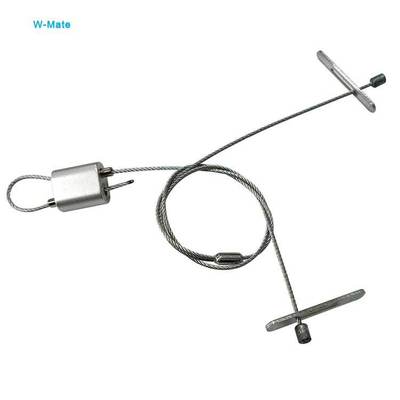

Premium brass wire rope grip lock with loops for secure cable management in suspended ceiling applications.
- Insert cable into Looping Gripper
- Pass cable through or around anchor point
- Insert cable back into Looping Gripper
Remove load from cable, depress plunger & adjust cable height. Release plunger to lock cable position.
Note: Maintain minimum 2 inch distance from all suspended objects or support structures.
| Parameter | Details |
|---|---|
| Product Name | Adjustable Wire Rope Grip Lock |
| Material | Brass |
| For Cable Diameters | 1.0-1.5mm |
| Cable Exit | Bottom Exit |
| Surface Treatment | Satin chrome |
| Weight Load | 20-100kg |
| Application | Suspended Ceilings (False Ceiling, Acoustic baffles, etc) |
| Certification | SGS-RoHS |
- Self-locking device creates adjustable loops that can be modified anytime
- Allows for reuse of both the gripper and steel cable
- Simplifies workflow when changing signage or displays
- Ideal solution for retail displays, event planning, and architectural applications
Ideal for hanging light fittings, signs, HVAC systems, pipes, artworks and other suspended applications. Features easy length adjustment and quick release mechanism.
Dongguan Wire Rope Mate Hardware Co., Ltd.
Specialists in lighting suspension kits, display hardware accessories, stamping pieces, wire ropes, and other hardware components for various industries including lighting, display, construction, and retail.
- Inquiry and consulting support
- Design application solutions
- Sample testing support
- Factory visits available
- OEM services including custom branding
- Comprehensive after-sales support
Packaging: Export standard wooden pallet
Shipping: Available by air or sea as requested
The built-in locking mechanism securely grips steel cable for the lifetime of the display. This self-locking device creates adjustable loops that can be modified anytime, allowing for reuse of components and simplifying workflow when changing signage.
Yes, we've conducted laboratory tests on the minimum breaking loads for all our looping gripper models.
Custom imprinting increases delivery time by 3-5 days.
For more product information, please contact our customer service team.
