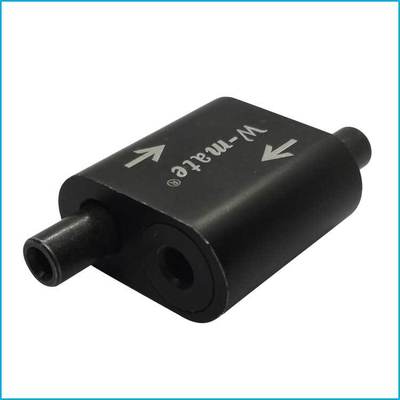

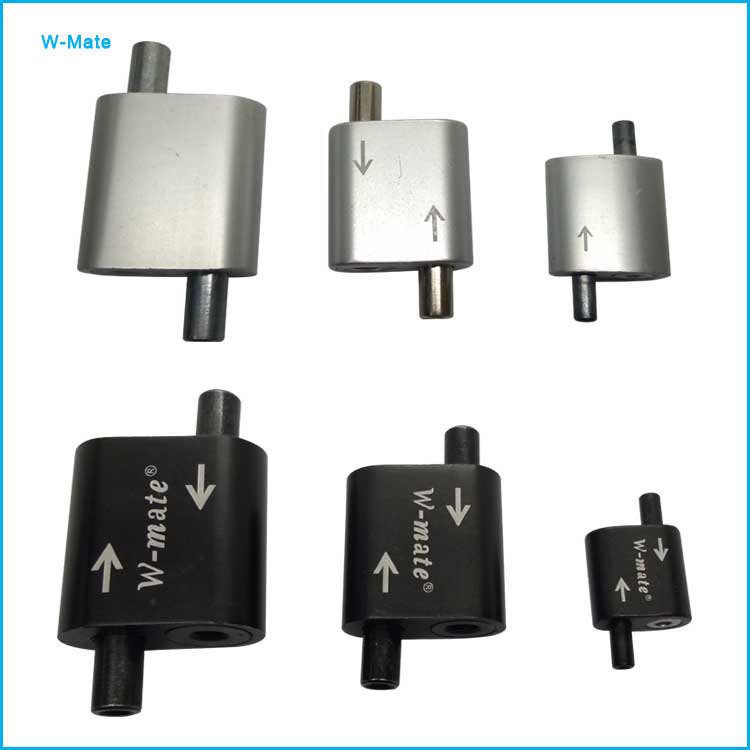

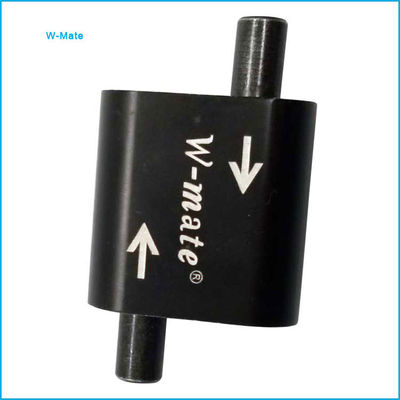

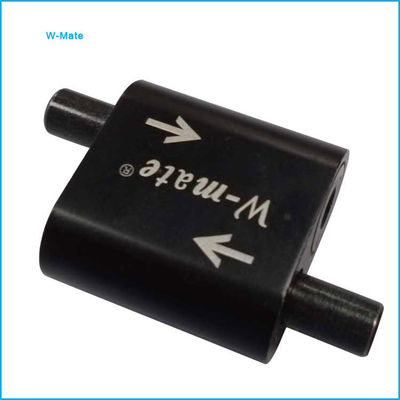

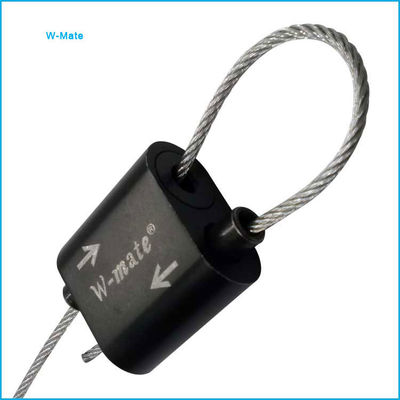

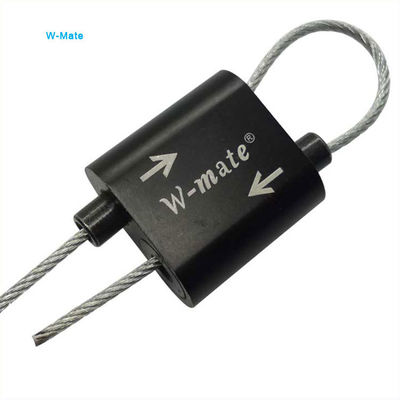

M12 Black Self Gripping Cable Looping Gripper with 1*7 and 1*19 Steel Wire Rope
Datos del producto:
| Lugar de origen: | Guangdong, China |
| Nombre de la marca: | W-mate |
| Certificación: | ROHS |
| Número de modelo: | Agarrador de cable ajustable |
Pago y Envío Términos:
| Cantidad de orden mínima: | 100 |
|---|---|
| Precio: | $0.80-0.85 |
|
Información detallada |
|||
| Material: | Cobre, latón | Tipo: | Clip de cuerda de alambre |
|---|---|---|---|
| Color: | Nícel/cromo/negro/blanco | Construcción de cables: | 1*7,7*7,1*19,7*19 |
| Longitud de hilo: | 10.00 mm | Diámetro de cable: | 0.8 mm a 1.2 mm |
| Carga de trabajo segura: | 150,00 kg | Mini carga de ruptura: | 12.5 kg a 500 kg |
| Tamaño (L*W*H): | 15*15*8.5 a 42*42*22 | Moq: | 100 pcs |
| Disponibilidad de muestra: | muestra proporcionar | Personalización: | Material, color, dimensión |
| Tiempo de entrega: | 15 días | Métodos de envío: | Express, flete de mar, agente |
| tarifa defectuosa: | Menos de 0.2% | ||
| Resaltar: | M12 Cable Looping Gripper,1*7 Steel Wire Rope,1*19 Looping Gripper |
||
Descripción de producto
Black Loop Maker Self Gripping Adjustable M12 Double Sides Steel Wire Rope Cable Looping Gripper Aluminum
Technical Specifications
| Cable Diameter | Mini Breaking Load | Safe Work Load | Size (L*W*H) |
|---|---|---|---|
| φ0.8mm | 12.5kg | 2.5kg | 15*15*8.5 |
| φ1.0mm | 50kg | 10kg | |
| φ1.2mm | 80kg | 16kg | 20*18*10 |
| φ1.5mm | 130kg | 26kg | |
| φ1.8mm | 180kg | 36kg | 25*25*12 |
| φ2.0mm | 200kg | 40kg | |
| φ2.5mm | 300kg | 60kg | 30*30*15 |
| φ3.0mm | 400kg | 80kg | |
| φ4.0mm | 450kg | 90kg | 42*42*22 |
| φ5.0mm | 500kg | 100kg |
Frequently Asked Questions
Why choose our products?
- Excellent R&D capability with advanced processing and testing equipment (40+ machines including cutting, welding, and casting machines)
- Comprehensive inspection equipment
- Customizable specifications including material, color, and dimensions
- Professional QA team
- Superior after-sales services
How do we design ceiling suspension cables/kits?
We consider multiple factors including workload, safety, abrasion resistance, environment, cycle life, flexibility, and cost when designing ceiling suspension cables/kits based on your specific application requirements.
Quality and cost control
We implement four-stage inspections before and after production, with complete QC inspection processes and solutions to ensure quality while controlling costs.
How to place an order?
Please provide complete specifications including: Material, Diameter, Construction, Coating, Length, Packing, Quantity, and any special Remarks.
Production lead time
Standard lead time is 15 days, depending on order size. We can expedite urgent orders upon request.
Shipping methods and timelines
- Express (DHL, UPS, TNT, FEDEX): 3-5 days delivery
- Sea Freight: We will provide quotes based on your destination port
- Client-designated agent: Provide contact details and we'll arrange delivery
Quality guarantee and defective products
Our strict quality control maintains a defective rate below 0.2%. During the guarantee period, we replace small quantities with new orders. For defective batches, we repair and resend or discuss recall solutions as needed.
